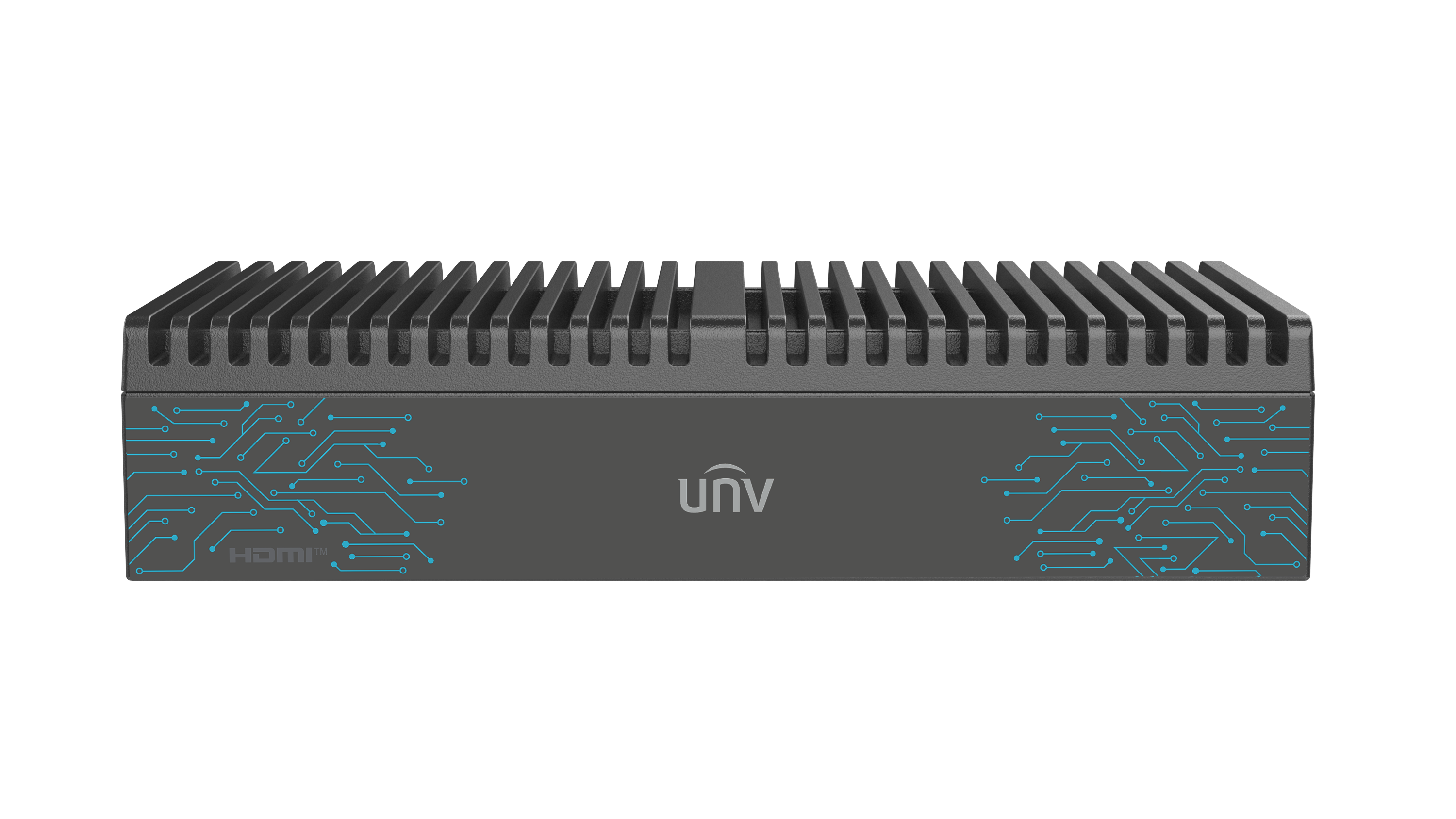

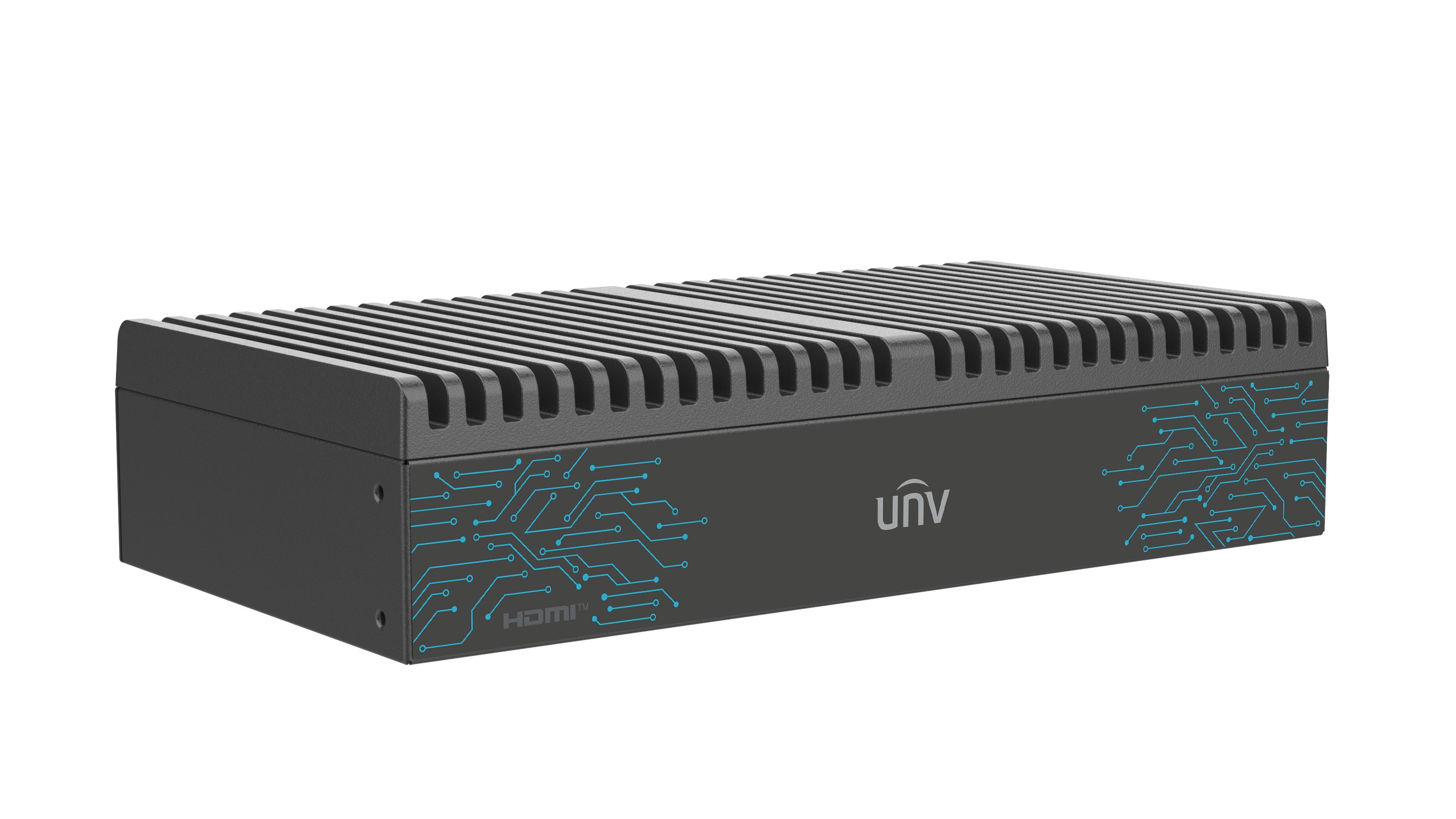

ECS-504S-SF-HA
- 4 Channels 1 Hard Disk Intelligent Edge small station • Supports 4-ch video stream based face snapshot and comparison. • Supports 4-ch video stream based action analysis, offers algorithms for fire detection, smoke detection, illegal parking, evacuation route obstruction detection, item loss, perimeter protection (intrusion detection, enter area, leave area, cross line detection), sleep on duty detection, absence detection, area people counting, people exceed the limit, no hard hat detection, no work clothes detection, no reflective clothing detection, smoking detection, calling detection, tripwire people counting, fall detection, no mask detection, long stay detection, fight detection, and using mobile phone detection. • Supports generating alarm videos/images and reporting alarm information. • Supports H.264 and H.265 video streams. • Supports connecting 4 third-party cameras via Onvif and RTSP. • Dual Gigabit network interfaces enable dual-network IP settings to adapt to different networking environments. • Supports browser-based access and control. • Lightweight, fanless structure, flexible deployment, suitable for harsh conditions including dusty, oily, very hot or very cold environments.
Key Features
- N/A Resolution
- Sensor: 1/3.0" CMOS
- Day/Night: IR-cut filter with auto switch (ICR)
- WDR: DWDR
- Video: Ultra 265, H.265, H.264, MJPEG
- Frame Rate: Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440)
- Lens: 2.8 mm - 4.0 mm
- Adjustment Angle: Pan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360°
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Size: 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H)
- Weight: 0.24kg (0.53lb)
Camera
Video & Audio
| Max Resolution | N/A | Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Sensor | 1/3.0" CMOS | Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440) |
| Day/Night | IR-cut filter with auto switch (ICR) | Audio Compression | G.711U, G.711A |
| WDR | DWDR | Two-Way Audio | N/A |
Lens
General
| Focal Length | 2.8 mm - 4.0 mm | Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Adjustment Angle | Pan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360° | Dimensions | 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H) |
| Shutter | Auto/Manual, 1 ~ 1/100000s | Weight | 0.24kg (0.53lb) |
