Product Overview
HC191@GHN-2C32S-OS

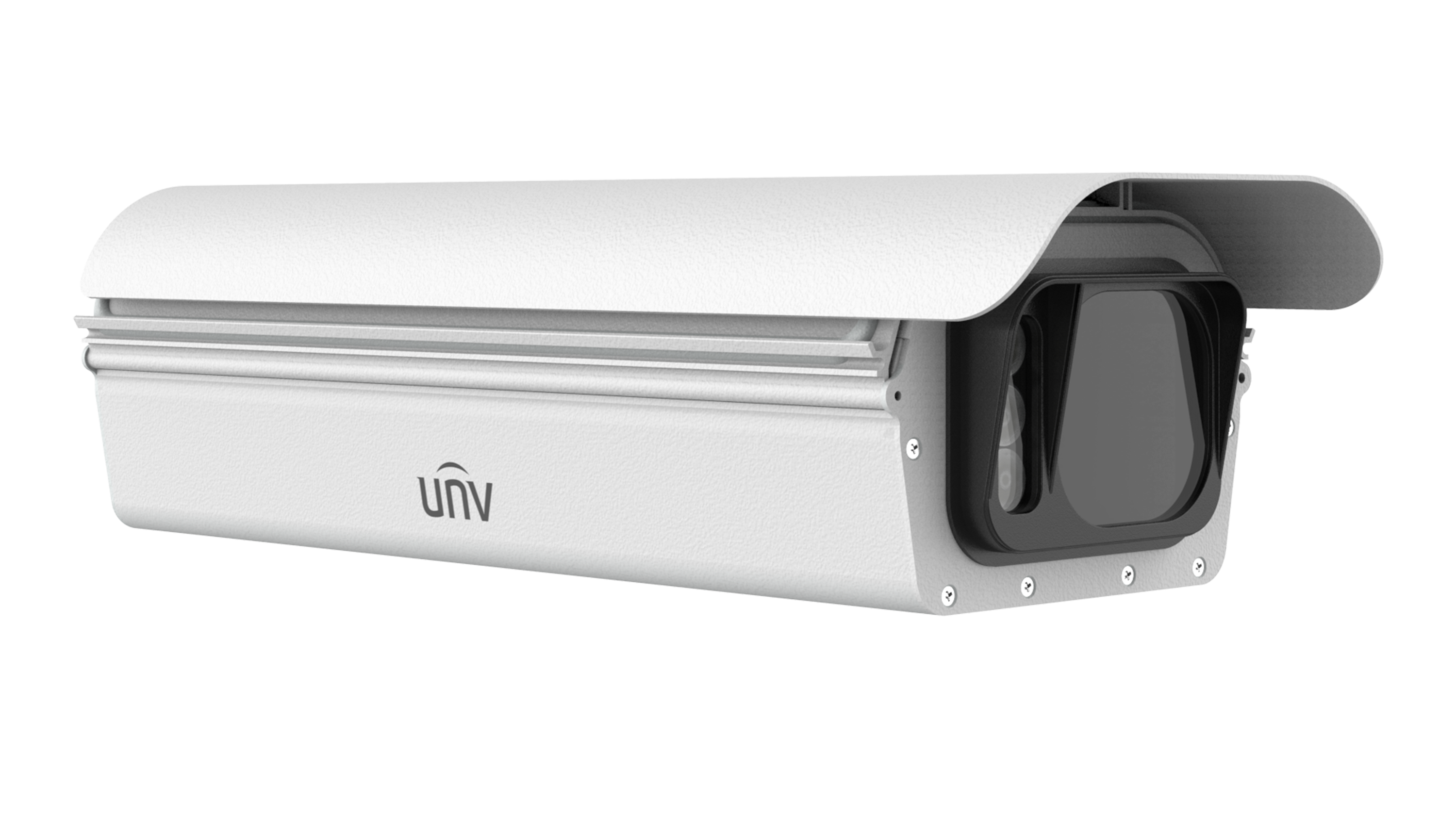

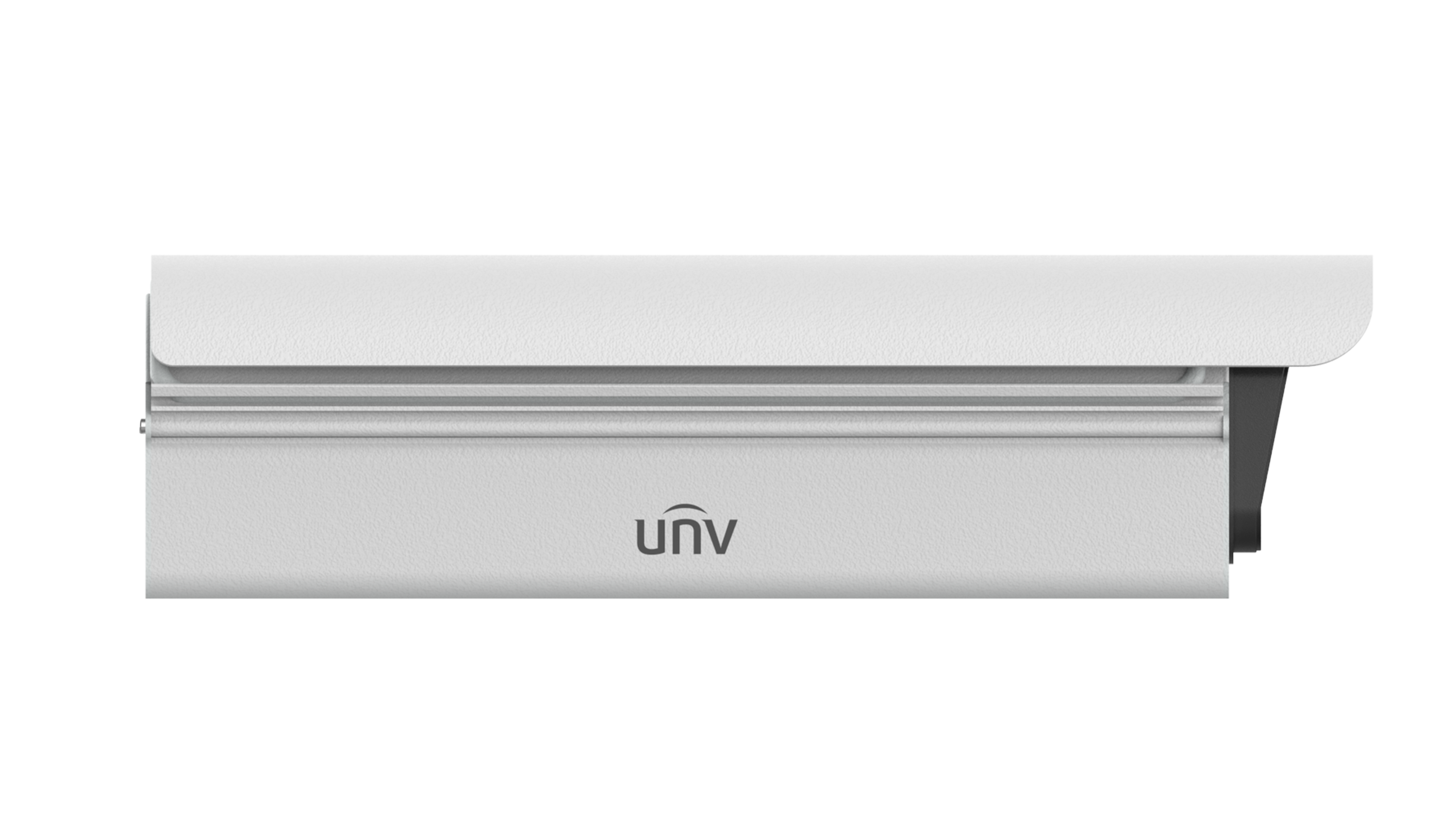

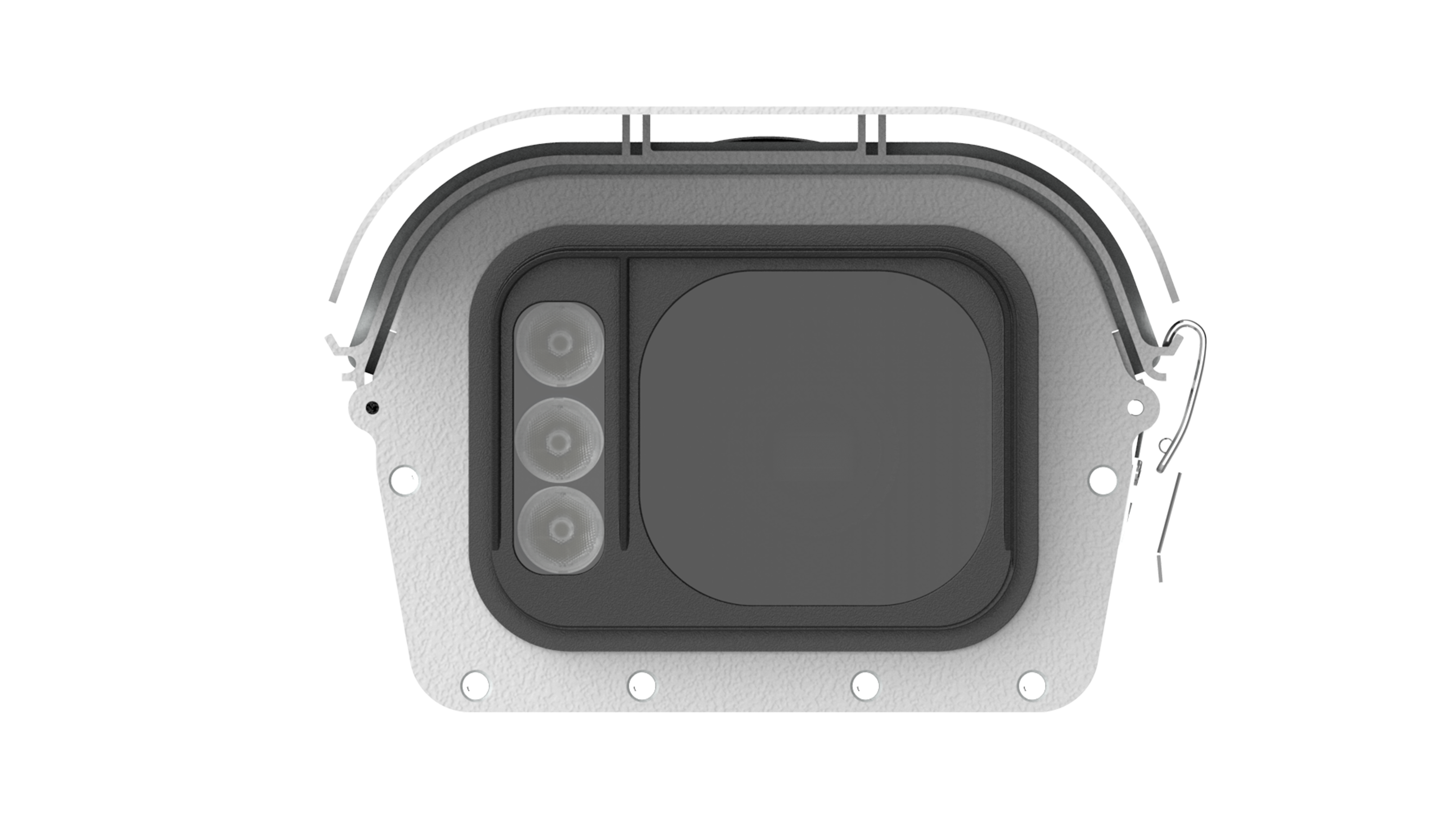

- 9MP Deep Intelligence Checkpoint Camera Unit(Sky-eye) • 9MP industrial camera with wide field of view. • Excellent performance in low light environments. • Shipped with an Ethernet extension cable for easy operation. • Advanced H.265 encoding technology improves compression efficiency. • Three streams are available for live view and storage to meet different bandwidth and frame rate requirements. • Violation detection: speeding. • Vehicle feature recognition: license plate, vehicle color, vehicle type, logo, model, etc.
Key Features
- 9 MP Resolution
- Sensor: 1.1’’ 9MP Global Shutter CMOS
- Day/Night: IR-cut filter with auto switch (ICR)
- WDR: DWDR
- Video: Ultra 265, H.265, H.264, MJPEG
- Frame Rate: Main Stream: 4MP (2688*1520)
- Lens: 2.8 mm - 4.0 mm
- Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Size: 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H)
- Weight: 0.24kg (0.53lb)
Camera
Video & Audio
| Max Resolution | 9 MP | Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Sensor | 1.1’’ 9MP Global Shutter CMOS | Frame Rate | Main Stream: 4MP (2688*1520) |
| Day/Night | IR-cut filter with auto switch (ICR) | Audio Compression | G.711U, G.711A |
| WDR | DWDR | Two-Way Audio | N/A |
Lens
General
| Focal Length | 2.8 mm - 4.0 mm | Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | Dimensions | 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H) |
| Shutter | Auto/Manual, 1 ~ 1/100000s | Weight | 0.24kg (0.53lb) |
