Product Overview
IPC2122LB-AF28(40)-A2

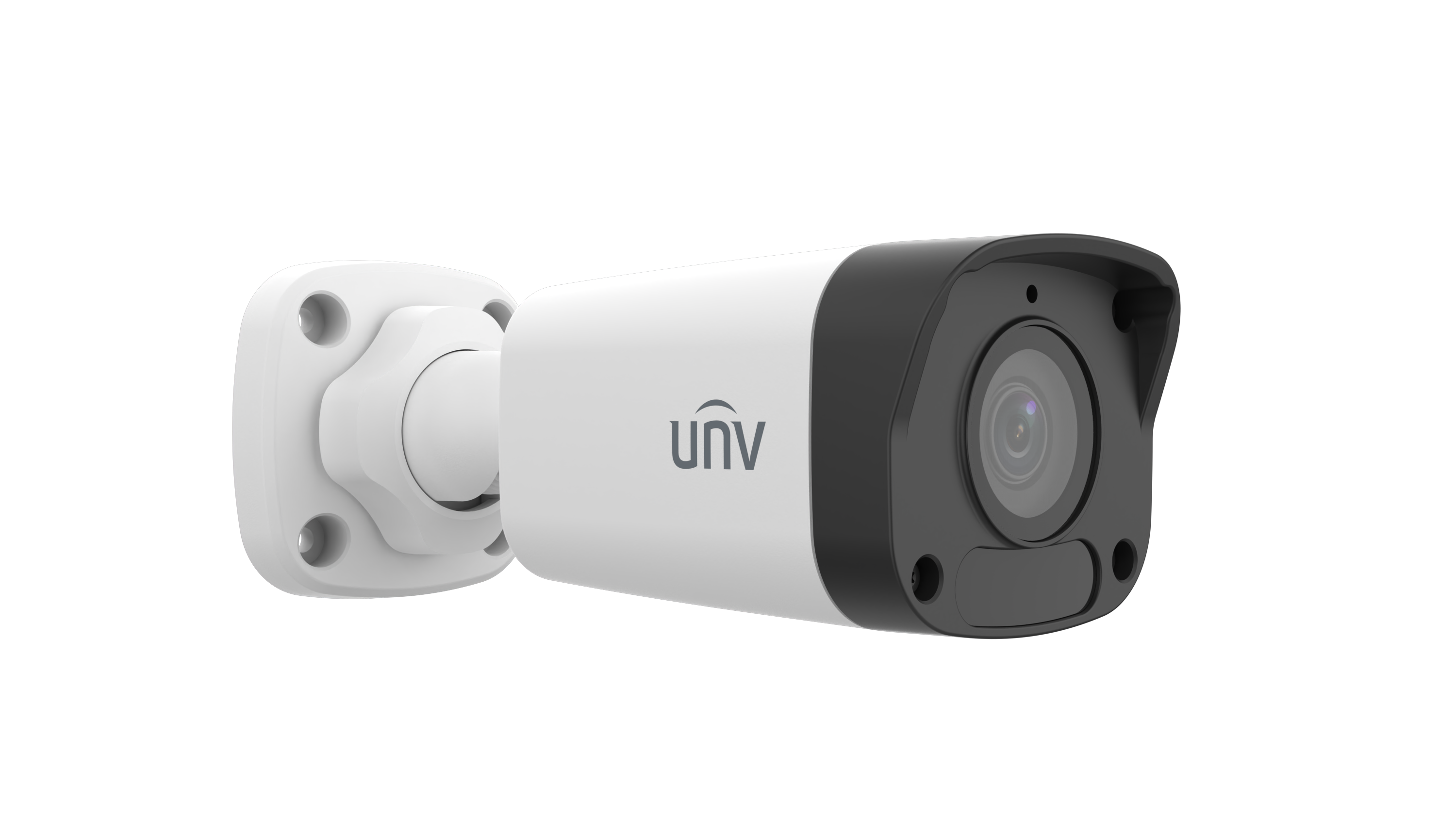

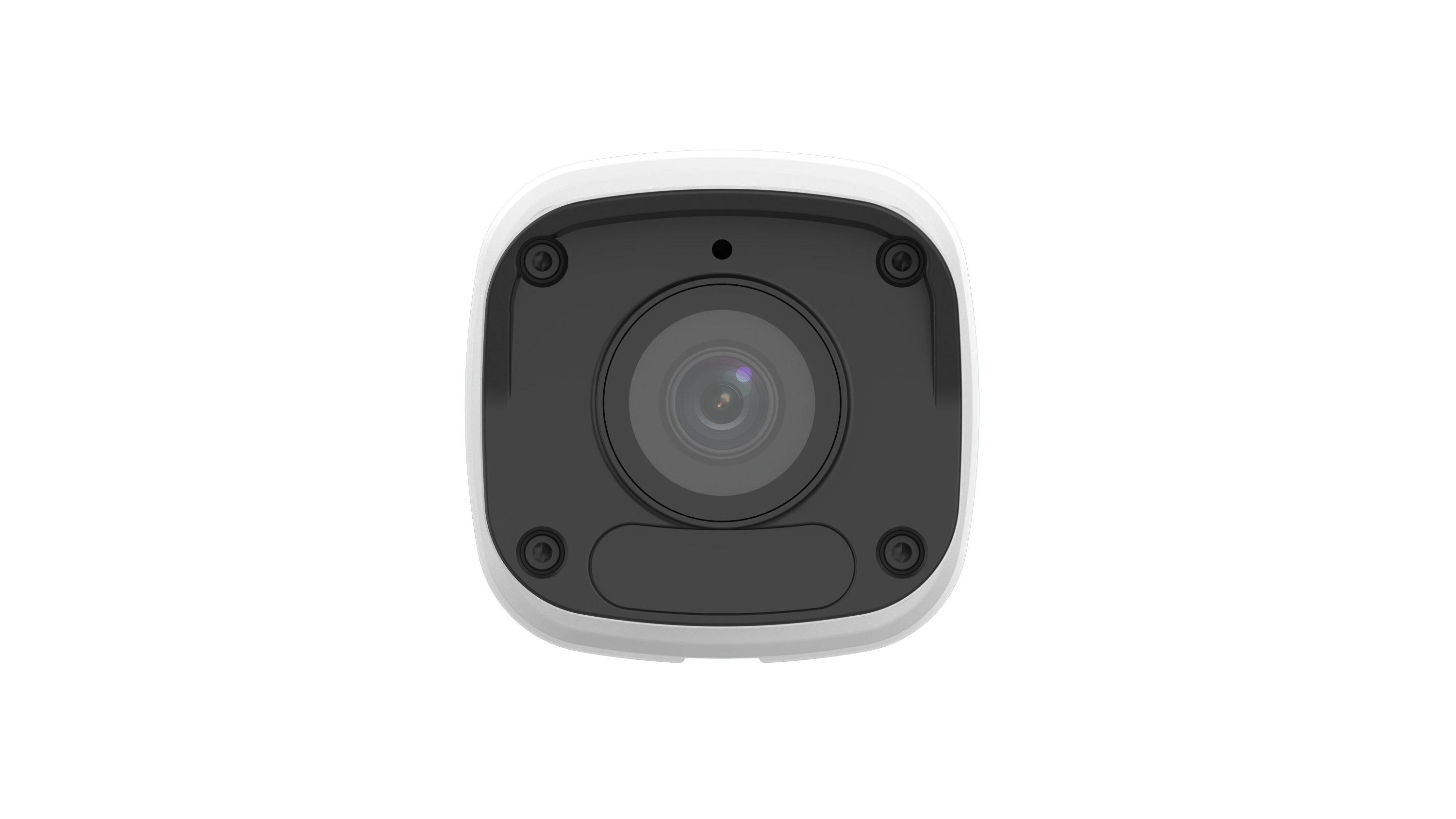

- The Uniview IPC2122LB-AF28(40)-A2 is a 2-megapixel fixed IR bullet network camera designed for high-quality surveillance. It features a 1/3.0" CMOS sensor delivering 1920×1080 resolution at up to 30 frames per second. The camera supports Ultra H.265, H.265, and H.264 video compression formats, optimizing storage and bandwidth efficiency. Equipped with Smart IR technology, it provides clear night vision up to 30 meters (98 feet). Additional features include a built-in microphone for audio monitoring, 2D/3D digital noise reduction, day/night functionality with an IR-cut filter, and IP67-rated weatherproofing for outdoor use. The camera offers flexible power options with support for DC12V and PoE (IEEE 802.3af), and its 3-axis design facilitates versatile installation angles
Key Features
- 2 MP Resolution
- Sensor: 1/3.0" CMOS
- Day/Night: IR-cut filter with auto switch (ICR)
- WDR: DWDR
- Video: Ultra 265, H.265, H.264
- Frame Rate: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Lens: 2.8 mm - 4.0 mm
- Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Size: 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H)
- Weight: 0.24kg (0.53lb)
Camera
Video & Audio
| Max Resolution | 2 MP | Video Compression | Ultra 265, H.265, H.264 |
| Sensor | 1/3.0" CMOS | Frame Rate | 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps |
| Day/Night | IR-cut filter with auto switch (ICR) | Audio Compression | G.711U, G.711A |
| WDR | DWDR | Two-Way Audio | N/A |
Lens
General
| Focal Length | 2.8 mm - 4.0 mm | Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | Dimensions | 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H) |
| Shutter | Auto/Manual, 1 ~ 1/100000s | Weight | 0.24kg (0.53lb) |
