IVT2600@A-A16S-OS

IVT2600@A-A16S-OS

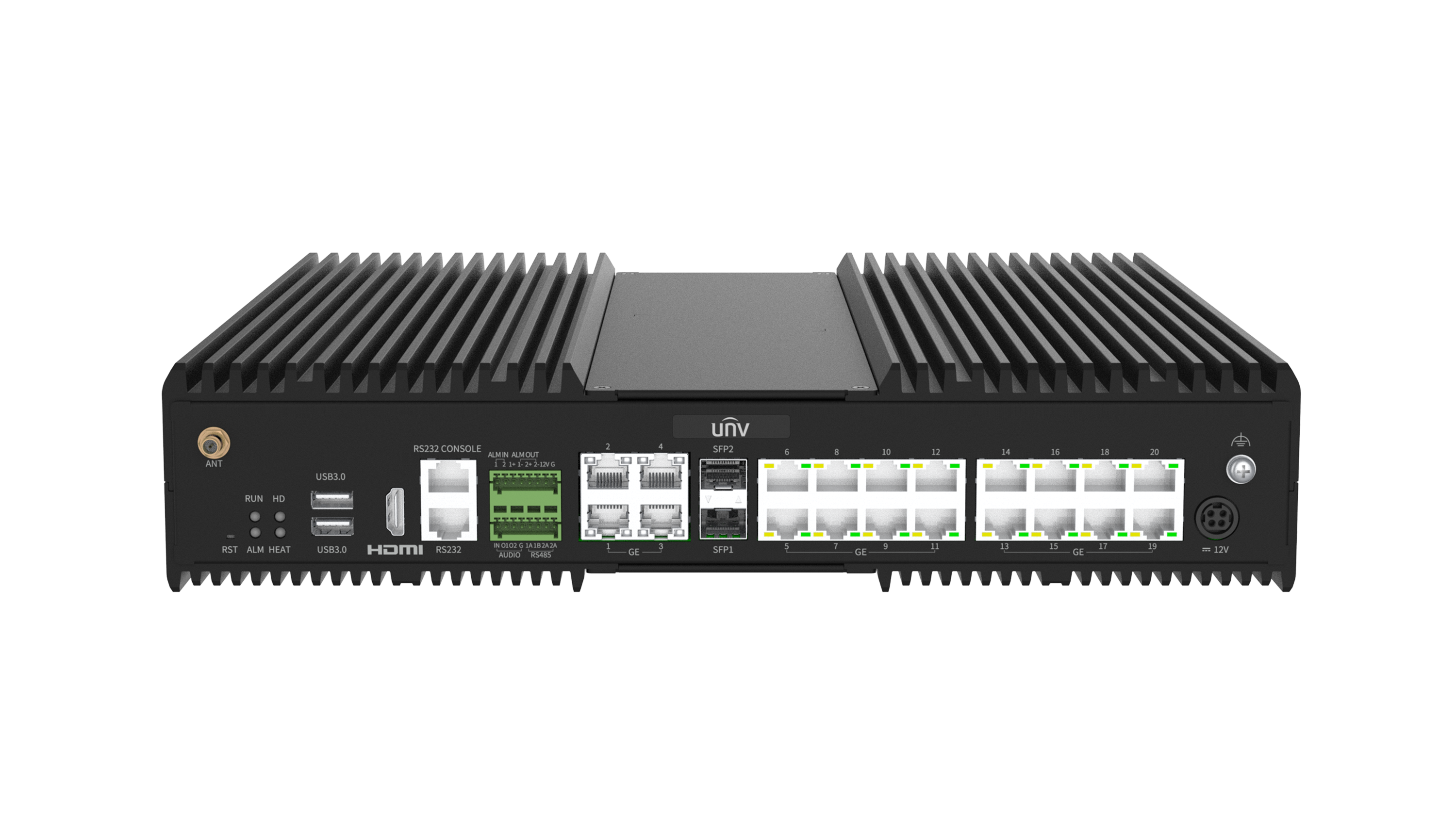

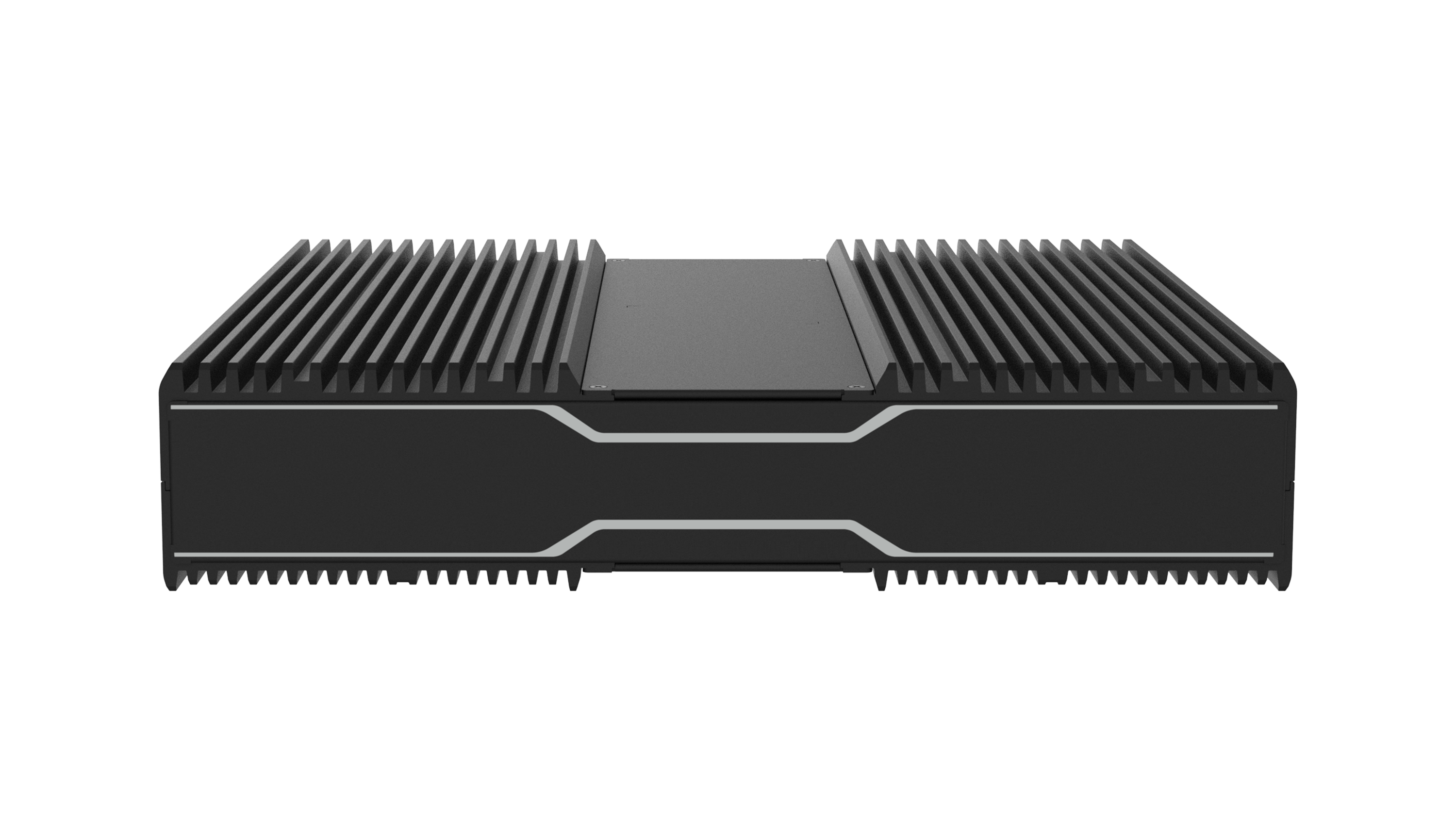

16-CH Traffic Recording Terminal Server • Embedded Linux OS, 24/7 stable operation, better protection against hacker and virus attacks. • Dual NICs allow two physical networks. • 20 * Gigabit Ethernet interfaces (RJ45) and 2 * Gigabit optical interfaces. • Supports CIF, D1, 720P, 1080P, 2K, and 4K video input. • Powerful video processing functions, supports decoding mainstream video compression formats including H.265 and H.264. • Supports text OSD, including plate numbers, time, location, etc. • Supports composition of multiple images. • Supports direct iSCSI block storage, instant video retrieval and playback. • Supports image storage, search, view, export, and upload. • Supports data acquisition through serial port. • Supports S.M.A.R.T. • Supplied with 1*4TB hard disk. • Die-cast aluminum chassis with elegant appearance, effective shields electromagnetic interferences to ensure stable and reliable operation.

2 MP Resolution
Sensor: 1/2.9" CMOS
Day/Night: IR-cut filter with auto switch (ICR)
WDR: DWDR
Video: Ultra 265, H.265, H.264, MJPEG
Frame Rate: Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps Sub Stream: 640*360,Max 30fps; 2C
Lens: 2.8 mm - 4.0 mm
Adjustment Angle: Pan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360°
Shutter: Auto/Manual, 1 ~ 1/100000s
Power: DC 12V±25%, PoE (IEEE 802.3af)
Size: 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H)
Weight: 0.24kg (0.53lb)

0/5

(0 reviews)

Camera

Video & Audio

Max Resolution	2 MP	Video Compression	Ultra 265, H.265, H.264, MJPEG
Sensor	1/2.9" CMOS	Frame Rate	Main Stream: 2MP (19201080),Max 30fps; 720P (1280720),Max 30fps Sub Stream: 640*360,Max 30fps; 2C
Day/Night	IR-cut filter with auto switch (ICR)	Audio Compression	G.711U, G.711A
WDR	DWDR	Two-Way Audio	N/A

Lens

General
